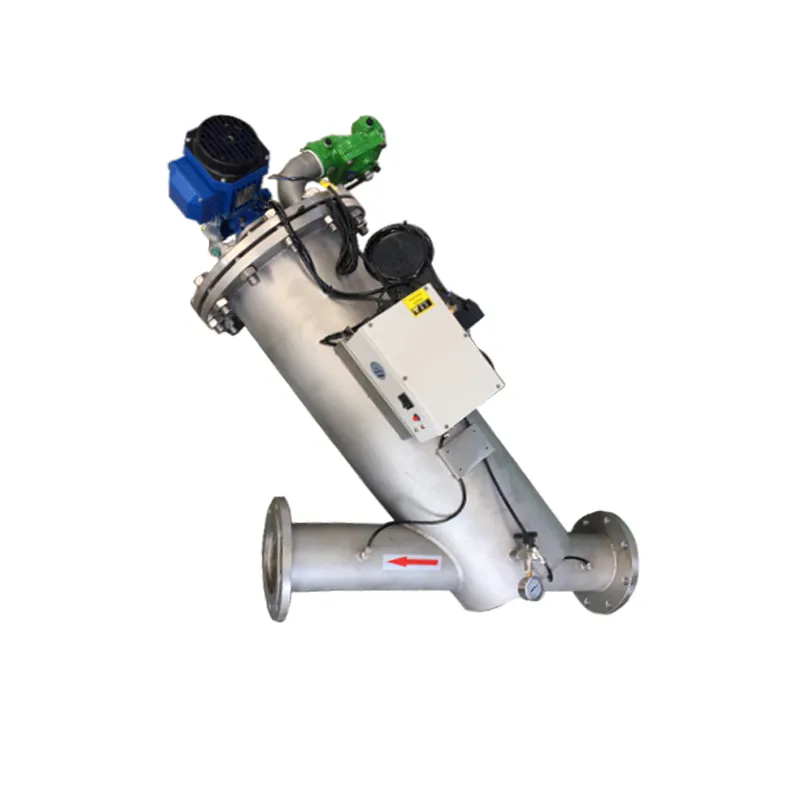

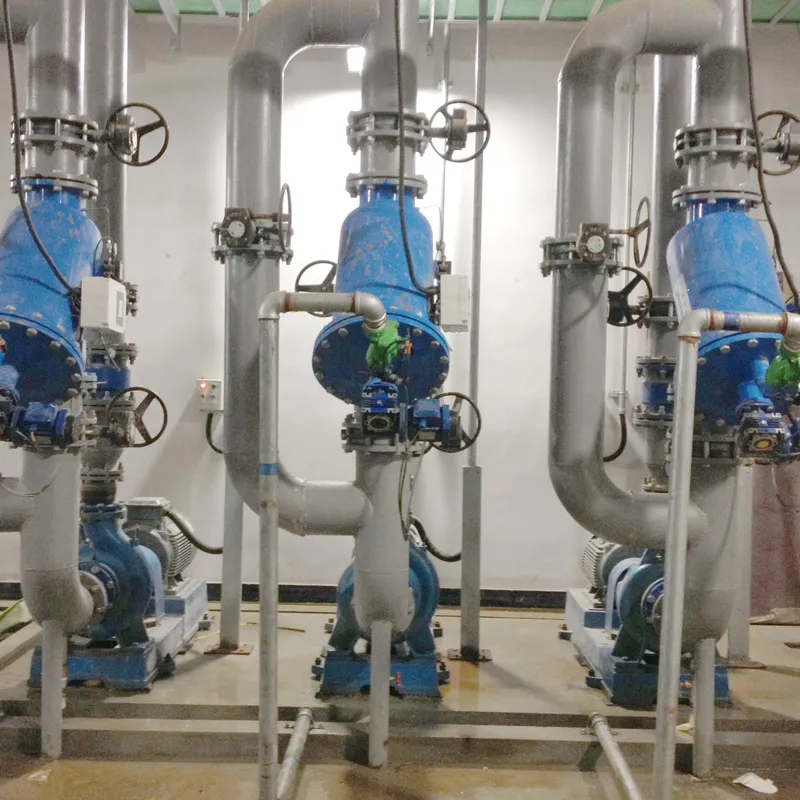

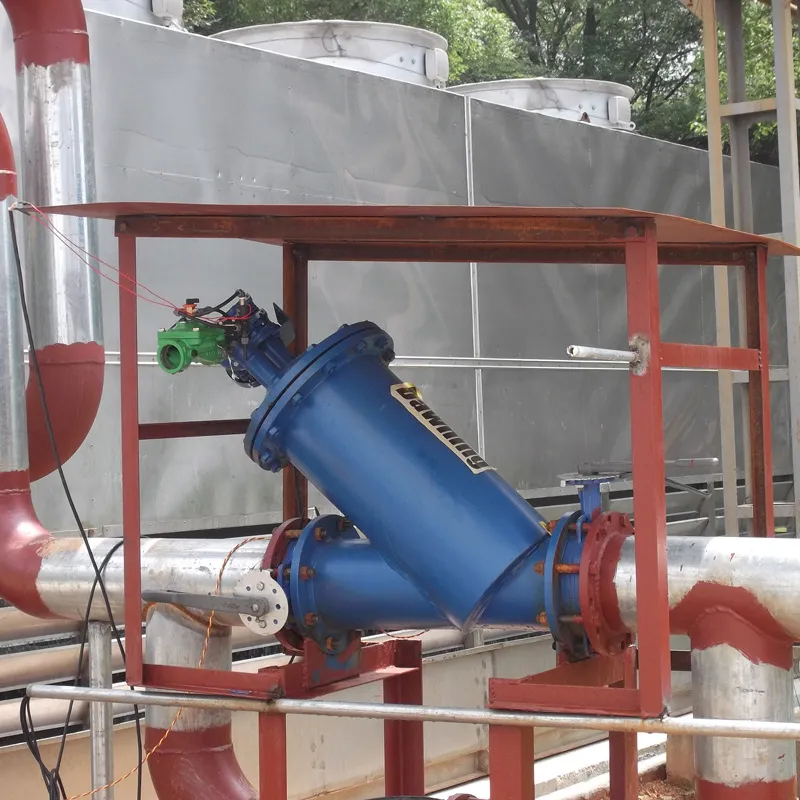

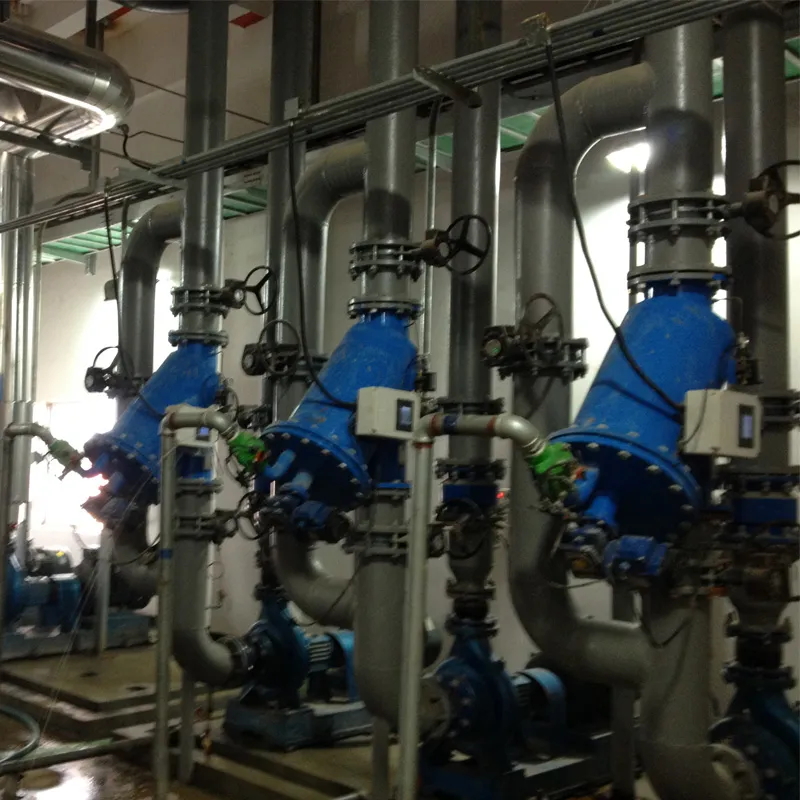

FY series elctric brush self-cleaning filter

Automatic self-cleaning water filters: Single unit flow 19-2000m3/h Filtration precision 20-4000 micron

Type：Vertical Material：Carbon steel Cleaning：Brush Control：Automatic

Product advantages

> High flow rate/high filtration accuracy

> Low pressure loss/low backwash water consumption

> High automation level

Product principle

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.

When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.

It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.

Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.

Flowrate	19-4000m3/h	Control way	Differentialpressure/time/manually/PLC
Filtration precision	20um-4000um	Cleaning way	Brush
Working pressure(max.)	1 .6MPa(Customized)	Cleaning time	10-200S(Adjustable)
Working pressure(min.)	0.1MPa	Perforate screen	800-4000um
Working temperature	<65'℃< /td>	Wedge screen	50-1000um
Power	380V150HZ	Sintered screen	20-800um

Product principle

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.

When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.

Product principle

Single maximum filter flow	19-1260m3/h	Control way	Pressure difference/Time/Manually/PLC
Filtration range	20μm-4000μm	Cleaning way	Brush
Max working pressure	1.6MPa（customized）	Cleaning time	10-200seconds(optional)
Min working pressure	0.1MPa	Drilling	800-4000μm
Working temperature	≤65℃	Wedge	50-1000μm
Power	380V/50Hz（customized）	Woven composite	20-800μm

Selection of data table

MODEL	WATER IN/OUTLET （mm）	A （mm）	B （mm）	C （mm）	D （mm）	DRAIN OUTLET （mm）	MOTOR POWER （KW）	FLOW （m3/h）	WEIGHT (Kg)
DLD-FY-50	50	870	545	690	420	25	0.12	19	50
DLD-FY-65	65	870	545	690	420	25	0.12	30	70
DLD-FY-80	80	870	545	690	420	40	0.12	50	80
DLD-FY-100	100	1270	860	690	420	40	0.18	80	105
DLD-FY-150	150	1365	980	750	420	50	0.18	150	160
DLD-FY-200	200	1670	1175	850	518	50	0.25	320	225
DLD-FY-250	250	1732	1236	1030	620	50	0.25	490	260
DLD-FY-300	300	2268	1573	1380	680	50	0.37	710	395
